AirBlock airtight inflatable arch

Product card

Options

Benefits

Effective brand exposure in any location – no need for constant access to a power supply for the blower
Full focus on the brand – zero noise and distractions
One design, multiple uses – replaceable outer shell

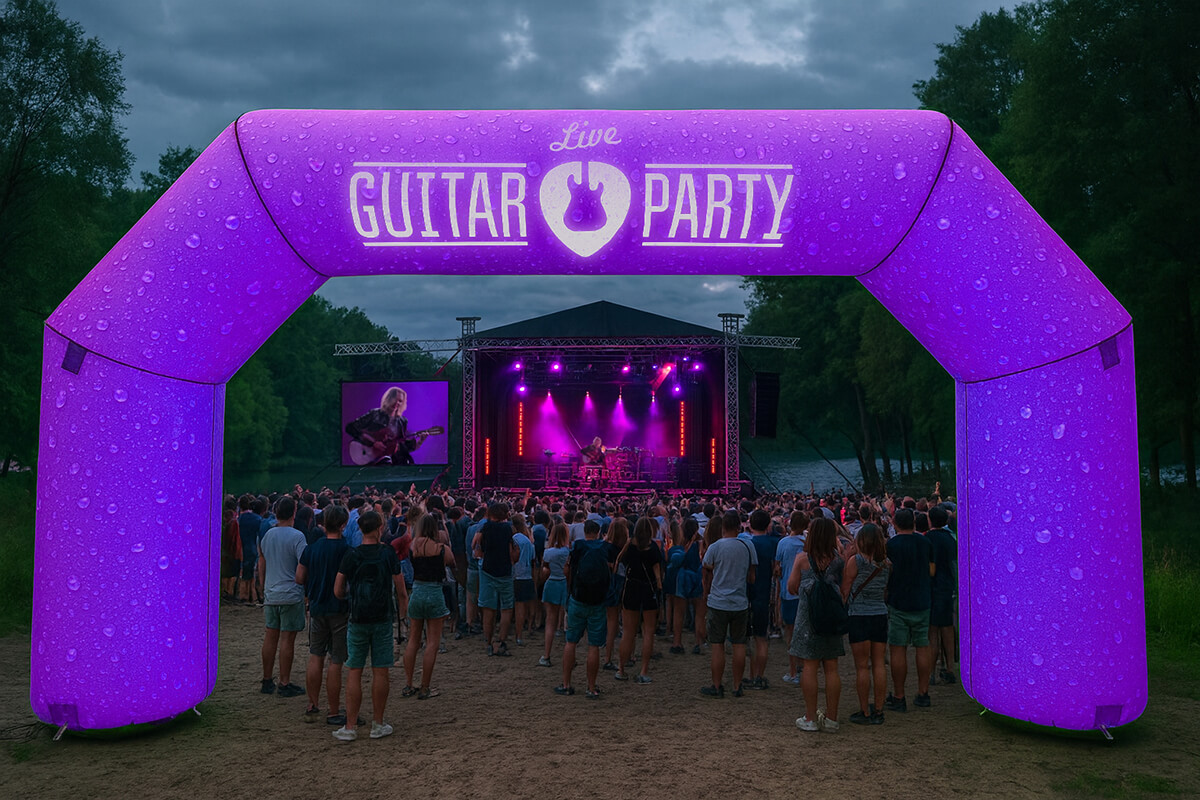

Professional brand image after dark – optional internal LED lighting
Wide range of shapes and sizes to suit your requirements

Technical data

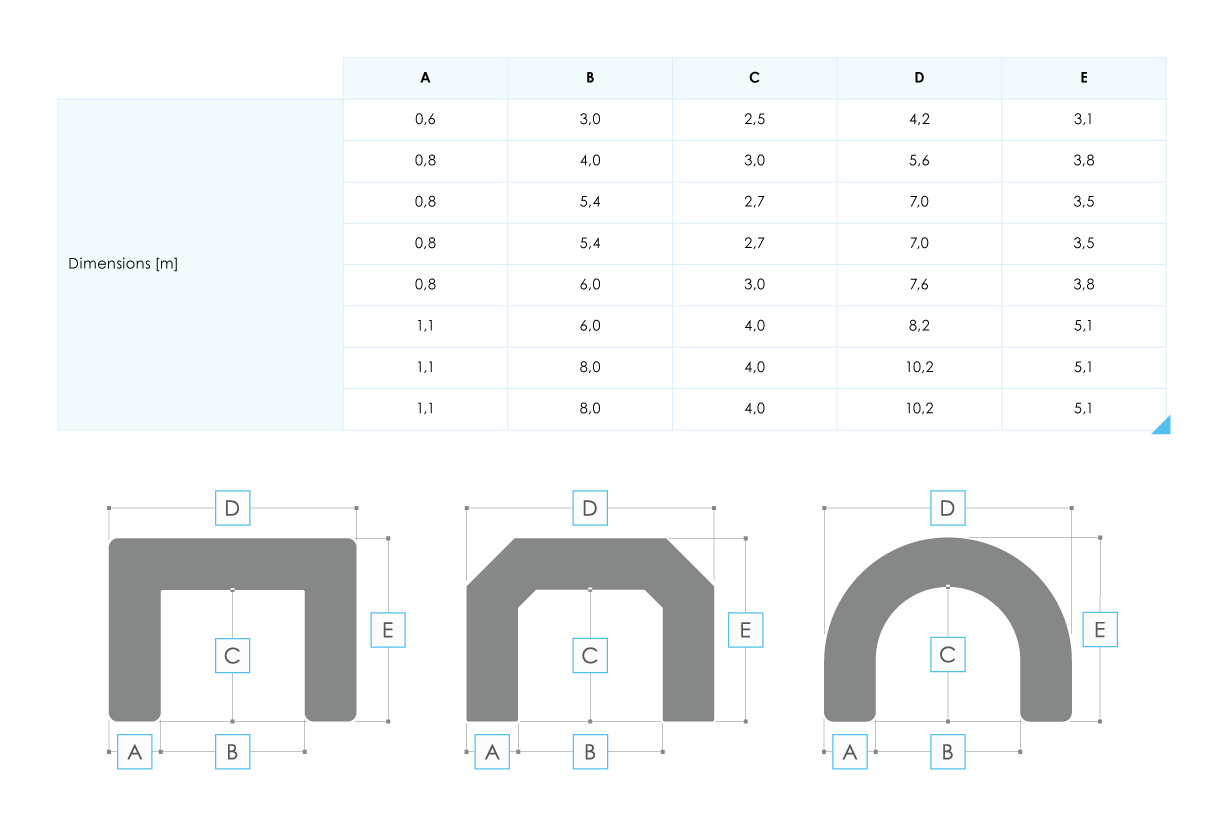

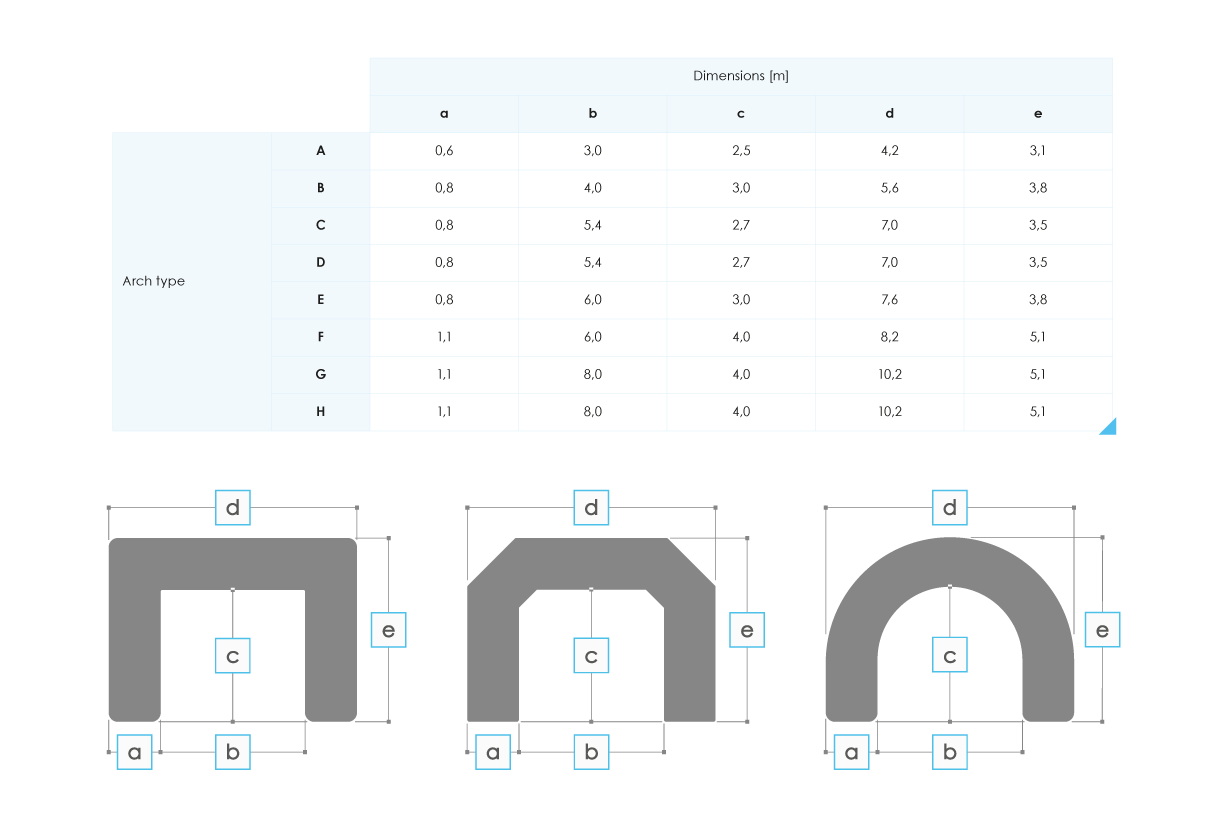

Dimensions

Show dimensions table

Download

Instruction

Additional information

Construction type:

Constant pressure
Printing techniques:

Solvent printing with lamination, Sublimation printing
Shape:

Arch, Polygon, Rectangle
External dimensions:

10,2 m x 5,1 m, 4,2 m x 3,1 m, 5,6 m x 3,8 m, 7,0 m x 3,5 m, 7,6 m x 3,8 m, 8,2 m x 5,1 m
Internal dimensions:

3.0 m x 2.5 m, 4.0 m x 3.0 m, 5.4 m x 2.7 m, 6.0 m x 3.0 m, 6.0 m x 4.0 m, 8.0 m x 4.0 m
Permissible maximum wind speed [m/s (km/h)]:

50 km/h
Warranty:

24 months

Product description

Complete energy independence – custom inflatable arch for events

The AirBlock custom inflatable arch has been designed for outdoor events where reliability, fault-free operation and complete control over image are important. Thanks to its constant pressure design, a single air filling is enough to keep the custom inflatable arch stable and aesthetically pleasing throughout the event – without the risk of collapse, the need for re-inflation or noise from the equipment. This solution eliminates the need for a permanent connection to the mains, which means complete energy independence – particularly important where access to power is limited or impossible.

One design, many applications – outdoor inflatable arch with replaceable cover

There are many customisation options. The AirBlock outdoor inflatable arch can be fully printed, allowing key messages and logos to be displayed in a way that immediately catches the eye and sticks in the memory. What’s more, the outer covering can be replaced, so one structure can be used for years.

Customised solutions – custom inflatable arch gates

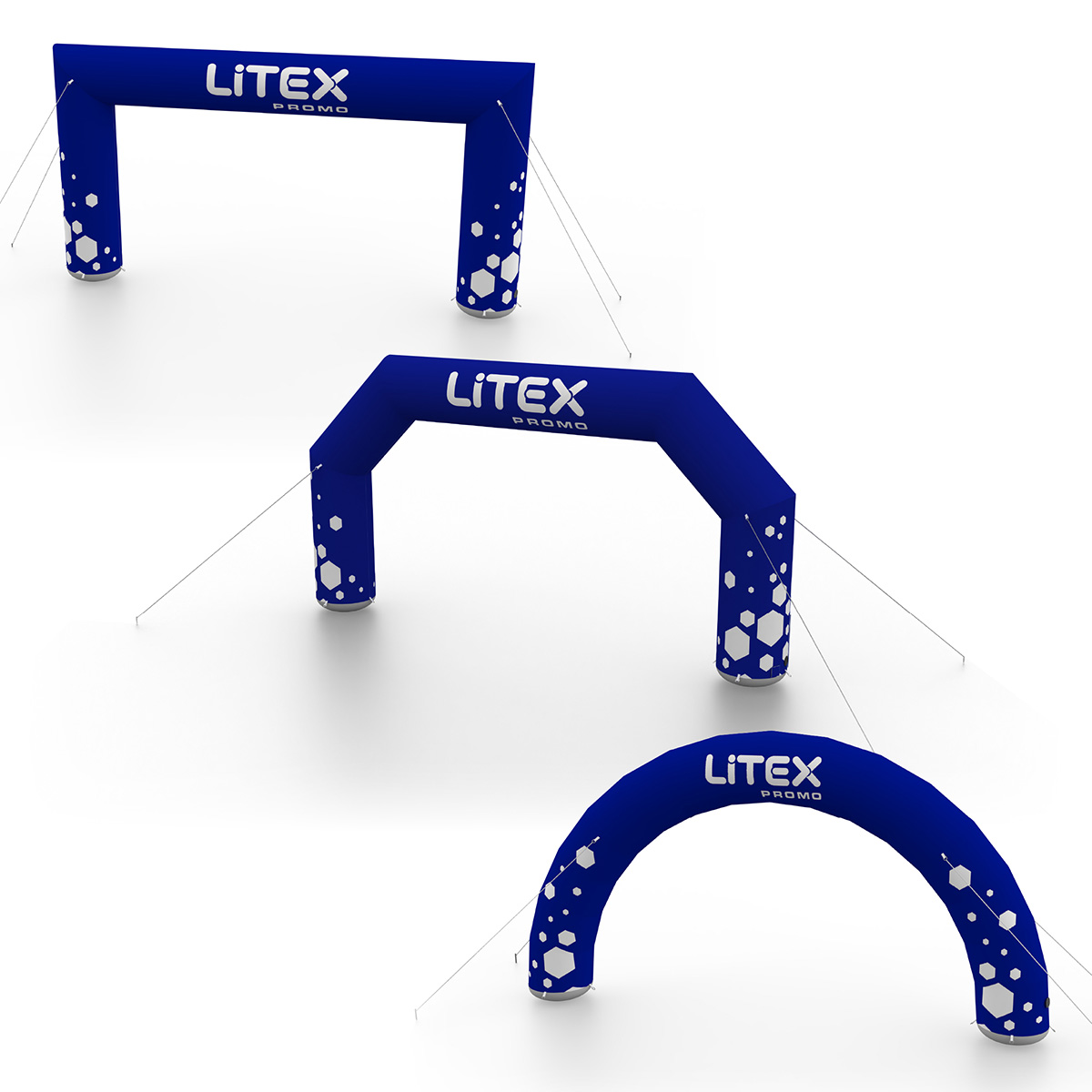

Three shapes of custom inflatable arch are available: rectangular, polygonal and arched. Each AirBlock custom inflatable arch can be additionally equipped with practical skids, which increase stability and minimise the risk of the structure tipping over in strong winds. Standard sizes range from 3.0 to 8.0 metres, allowing for easy adaptation to most spaces and applications. For non-standard requirements, it is possible to manufacture structures with custom dimensions

Investment in reliability – large inflatable arch made of durable materials

To ensure maximum durability in all conditions, a 300 g/m² polyurethane insert has been used inside large inflatable arch. This solution guarantees reliability and trouble-free operation, regardless of the type of event.

The outer surface is designed of durable 235 g/m² polyester with sublimation printing as standard. The large inflatable arch is also available in a version made of 260 g/m² polyester fabric with a flame retardant certificate – ideal where fire safety requirements are important.

In particularly demanding locations – with intensive outdoor use or in harsh weather conditions – it is possible to use an even more durable material: PVC-coated polyester (360 g/m²), with solvent printing and additional lamination. In addition, the PVC fabric can also be certified as flame retardant.

The result? A proven design that does not disappoint – regardless of weather and temperature. Thanks to the materials used, the AirBlock advertising gate is perfect for urban, mountain and forest environments – both dry and humid.

Standard fabric colours

Black

White

Pantone 431*

Cool Gray 5

Pantone 7527*

Pantone 467*

Pantone 476*

Pantone 1235*

PAntone 164*

Pantone 1797*

Pantone 1817*

Pantone 7704*

Pantone 7686*

Pantone 2768*

Pantone 369*

Pantone 336*

Pantone 3435*

Coated fabric colours

Pantone 7588c

Pantone 116c

Pantone 109c

Pantone 1505c

Pantone 186c

Pantone 368c

Pantone 341c

Pantone 2925c

Pantone 287c

Pantone 655c

Cool Gray 5

Cool Gray 11C

White

Black

* kolory są dopasowane do najbliższego Pantone

Accessories

Maximum functionality – a outdoor inflatable arch with practical extras

The AirBlock outdoor inflatable arch can be retrofitted with solutions that increase its functionality, safety and visual impact:

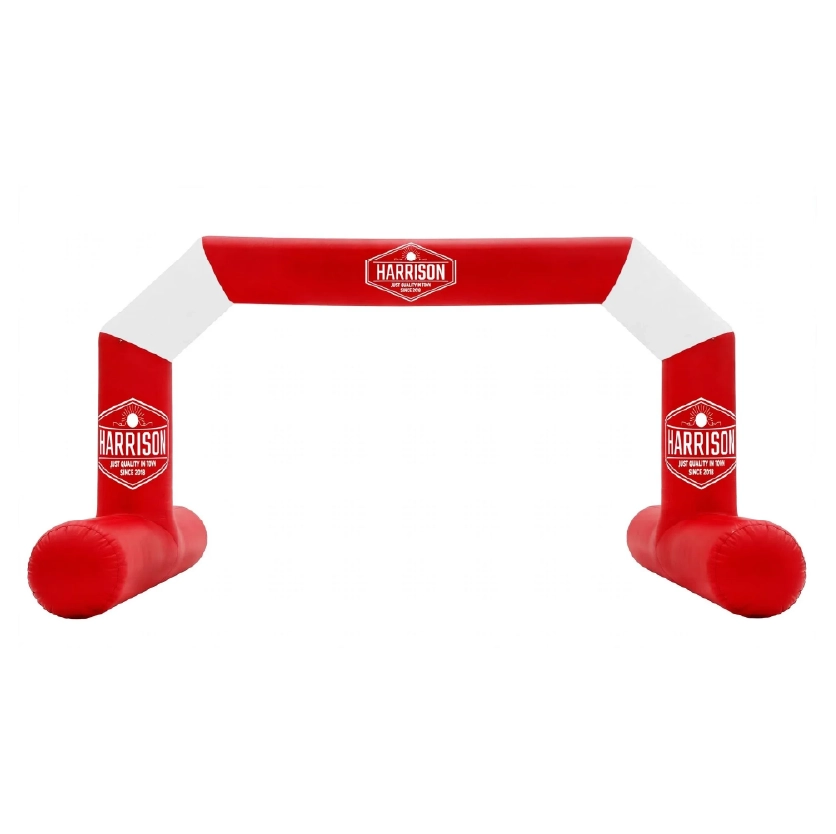

Skids that increase the stability of the structure and minimise the risk of the gate tipping over.
LED lighting mounted inside the structure guarantees excellent visibility after dark, highlighting branding and providing a ‘wow’ effect.
Wooden bases ensure that the gate is firmly anchored on hard surfaces such as concrete, asphalt or paving stones. This is an effective way to eliminate the risk of movement or tilting.
Sand weights bags allow for additional weighting of the structure in outdoor conditions. This ensures that the starting gate remains completely stable in strong winds or on uneven ground.

The solutions used eliminate the typical problems faced by organisers and ensure a professional effect from the beginning to the end of the event.
