Rectangular 3 m x 4 m

Product card

Options

2x3m
3x4m

Benefits

oryginalny, prostokątny kształt czaszy
optymalne wykorzystanie wąskich przestrzeni
system teleskopowy unoszący czaszę parasola podczas zamykania
możliwość łączenia kilku parasoli w jedno zadaszenie za pomocą rynien
wentyl umożliwiający swobodną cyrkulację powietrza

Product description

Technical data

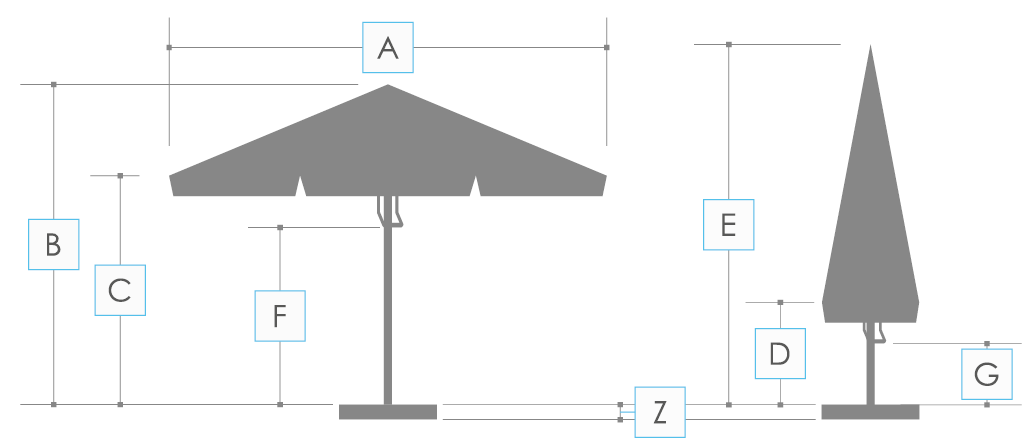

Dimensions

A₁

3000 mm
A₂

4000 mm
B

2960 mm
C

2320 mm
D

960 mm
E

3200 mm
F

2010 mm
G

510 mm
Z

The Z value is the usable height of the base which, if used, must be added to the B and E values of the parasol.

Telescope Handle Opening System

Additional information

Printing techniques:

Digital printing, Flat printing, Hand screen printing
Canopy finish:

With valance, Without valance
Type of fabric:

Woven fabric, Woven fabric made of recycled yarn (as an option)
Shape:

Rectangular
Size:

3 x 4 m
Opening system:

Telescopic-handle
Canopy finish:

Vent, Without vent
Type and colour of frame:

Aluminum, white
Number of ribs:

8
Permissible maximum wind speed [m/s (km/h)]:

7,9 (28)
Pole diameter [mm]:

60

Download

Knowledge base

Dedicated base

PD700MR

80 kg ±3%, Z: 120 mm

PDZ

5.5 kg, Z: 115 mm

The Z value is the usable height of the base, which, if used, must be added to the height of the parasol.
* Base type: standard tube / tube with a clamping knob

Optional base

PD800RS

100 kg ±3%, Z: 110 / 100 mm*

PDU-B40

118 kg ±3%, Z: 52 mm • •

PDUE-B50

159 kg ±3%, Z: 53 mm

The Z value is the usable height of the base, which, if used, must be added to the height of the parasol.
* Base type: standard tube / tube with a clamping knob

Accessories

Protective cover

Lighting

Rain gutters

Rectangular 3 m x 4 m
